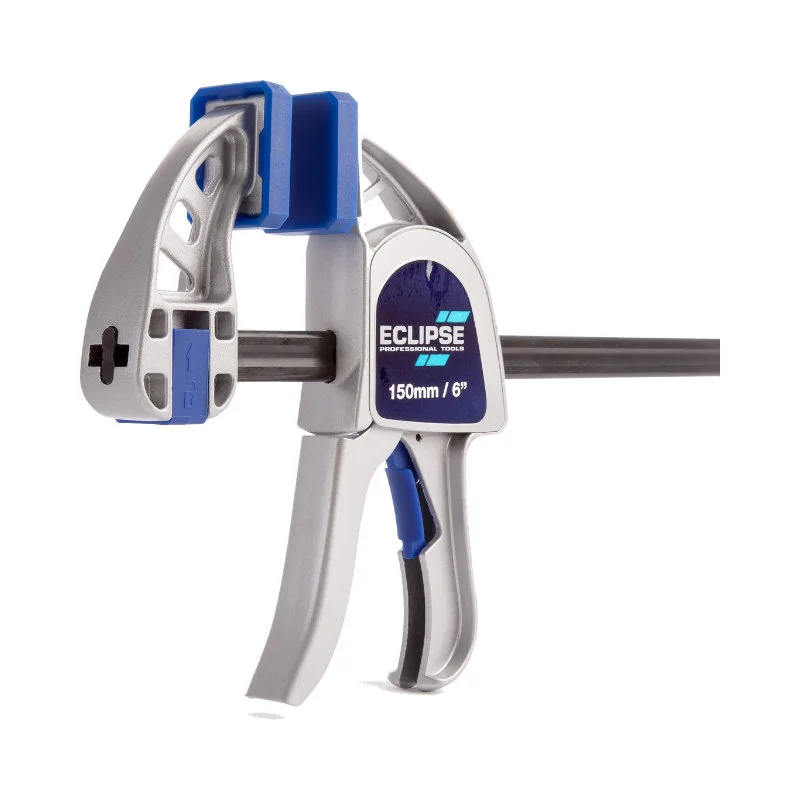

Eclipse One‑Hand Bar Clamp Heavy‑Duty, 150mm 6inch
Price range: R446.00 through R462.00 (each excl. VAT)
Eclipse One‑Hand Bar Clamp Heavy‑Duty NTEOHBC6‑HD for 150mm with alu. body and carbon‑steel bar delivering up to 300kg clamping force…
| Qty | Unit Price (each excl. VAT) | You Save |
|---|---|---|
| 1+ | R 462.00 | |
| 6+ | R 446.00 | less 3.6% |
Eclipse One‑Hand Bar Clamp Heavy‑Duty, 150mm 6inch, (NTEOHBC6‑HD)
Eclipse One‑Hand Bar Clamp Heavy‑Duty, 150mm, 6inch (NTEOHBC6‑HD) clamp and spreader designed for strong, controlled clamping with true one‑hand operation. Its lightweight aluminium body and carbon steel bar deliver up to 300 kgf of sustained holding force, making it suitable for heavy‑duty work‑holding in woodworking, assembly and light fabrication.
A spring‑loaded trigger provides rapid clamping with the other hand free to position workpieces, while an easy push‑button mechanism quickly converts the clamp into a spreader for tasks such as frame assembly or drawer fitting. Removable, non‑marring pads protect the work surface and ensure even pressure distribution across the jaws.
| Minimum Order Quantities | 1+, 6+ |
|---|
Specifications
- Model: NTEOHBC6‑HD / EOHBC6‑HD
- Type: Heavy‑duty one‑handed bar clamp and spreader
- Clamping capacity: 150 mm (6 inch)
- Maximum clamping force: Up to 300 kgf sustained holding force
- Frame material: Lightweight aluminium frame
- Bar material: Carbon steel bar for strength and rigidity
- Operation: One‑handed, spring‑loaded clamping trigger with quick‑release mechanism
- Spreader function: Push‑button system to convert from clamp to spreader and back
- Jaw pads: Removable, non‑marring pads for even pressure and workpiece protection
- Typical applications: Heavy‑duty work‑holding in woodworking, cabinetry, assembly, repairs and general workshop use
Benefits
- Heavy‑duty design offers up to 300 kgf clamping force, significantly higher than standard one‑handed bar clamps, for demanding work‑holding tasks.
- Aluminium frame and carbon steel bar provide a strong yet relatively lightweight clamp that is comfortable to use over long sessions.
- One‑handed trigger and quick‑release make it easy to position and secure workpieces while keeping your other hand free.
- Fast clamp‑to‑spreader conversion and non‑marring pads increase versatility, covering both clamping and spreading jobs while protecting finished surfaces.
